Linear Guide Variable Hybrid Stepper Motor 21kg.Cm 1.8 Degree

Ask Latest Price
Video Channel
Brand Name :JK
Model Number :JK60HS67-2804BK2.8
Certification :CE, ROHS,ISO9001
Place of Origin :Jiangsu, China (Mainland)
MOQ :3-10pcs
Price :US$20.5~US$45.5
Payment Terms :T/T, Western Union, paypal
Supply Ability :100000pcs/month
Delivery Time :For samples , 7-15 days / For batch , 15-35days
Packaging Details :with export carton . big quantity with pallet
Name :Ball Screw Slide Linear Motion Module
Model :JK60HS67-2804BK2.8
Color :Silver & Black
Number of phase :2
Step angle :1.8°
Valtoge :3.36v
Current :2.8A
Resistance :1.2Ω
Inductance :4.6mH
Torque :21kg.cm
MOQ :10pcs
more
Contact Now

Add to Cart

Find Similar Videos
High Torque 2 Phase 1.8 Degrees Nema 17 Hybrid Stepper Motor 00:21
High Torque 2 Phase 1.8 Degrees Nema 17 Hybrid Stepper Motor
Nema17 Hybrid Stepper Motor High Torque 2.2kg.cm - 7.3kg.cm 4/6-wire For 3d Printer 00:10
Nema17 Hybrid Stepper Motor High Torque 2.2kg.cm - 7.3kg.cm 4/6-wire For 3d Printer
Factory Price Nema 11 28MM Stepper Motor with double shaft for 3D Printer 00:33
Factory Price Nema 11 28MM Stepper Motor with double shaft for 3D Printer
Nema42 Bipolar Hybrid Stepper Motor High Holding Torque  8N.m To 25 N.m With 4 lead wires 00:36
Nema42 Bipolar Hybrid Stepper Motor High Holding Torque 8N.m To 25 N.m With 4 lead wires
Stepping Motor NEMA 17 High Torque 37OZ.IN 2.6kg.cm 24V 1.33A With Black Endcap 1m Wires 00:14
Stepping Motor NEMA 17 High Torque 37OZ.IN 2.6kg.cm 24V 1.33A With Black Endcap 1m Wires
928oz.In 6A 86H3P 14mm Keyway Nema 34 High Torque Stepper Motor 00:24
928oz.In 6A 86H3P 14mm Keyway Nema 34 High Torque Stepper Motor
Holding Torque 2.2kg.cm  / Nema17 42mm 2phase Hybrid Stepper Motor 00:09
Holding Torque 2.2kg.cm / Nema17 42mm 2phase Hybrid Stepper Motor
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill 00:11
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill
57BYG 57mm Nema 23 Stepper Motor With Driver 12v 24v 36v 2.8A 1.26N.M 2N.M 3N.M Used For CNC Milling Machine 00:30
57BYG 57mm Nema 23 Stepper Motor With Driver 12v 24v 36v 2.8A 1.26N.M 2N.M 3N.M Used For CNC Milling Machine

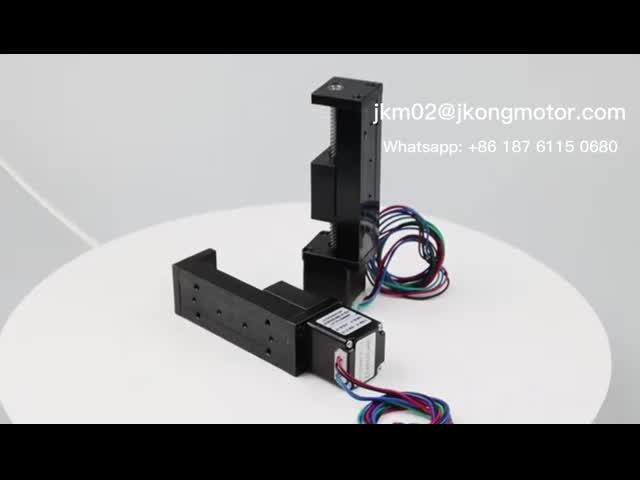

50MM 2 Inch Stroke T-Type NEMA11 28MM Stepper Motor Kit 00:15
50MM 2 Inch Stroke T-Type NEMA11 28MM Stepper Motor Kit
View Product Description

nema24 Lead Screw Ball Screw Stepper Motor CNC Kit for Linear Motion Guide

The NEMA 24 stepper motor linear actuator features easy integration into your applications, a high level of precision, safer performance, and an economical cost. The NEMA 24 stepper motor linear actuator has four form factors available – captive, non-captive external, and electric cylinder linear versions. Let our applications engineering team help you determine whether the NEMA 24 stepper motor linear actuator or one of our other linear actuator solutions is best suited to meet your application’s needs.


Electrical Specification:

  • Step Angle Accuracy: ±5%
  • Resistance Accuracy: ±10%
  • Inductance Accuracy: ±20%
  • Temperature Rise: 80°C Max
  • Ambient Temperature: -20°C~+50°C
  • Insulation Resistance: 100MΩ Min., 500VDC
  • Dielectric Strength: 500VAC for one minute
  • Shaft Radial Play: 0.02Max (450g-load)
  • Shaft Axial Play: 0.08Max (450g-load)

Physical Specification:

  • Frame Size: 60*60mm
  • Body Length: 88mm
  • Shaft Shape: D shaft
  • Shaft Diameter: Φ8mm
  • Shaft Length: 24mm
  • Number of Leads: 8
  • Lead Length: 300mm

Specification of JK60HS motors:

Model No.
Motor Length

Current
/Phase

Resistance
/Phase

Inductance
/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass
(L)mm A Ω mH N.m No. g.cm g.cm Kg
JK60HS56-2008 unipolar 56 2 1.8 3. 1.17 8 700 300 0.77
parallel 2.8 0.9 3.6 1.65
Series 1.4 3.6 14.4 1.65
JK60HS67-2008 unipolar 67 2 2.4 4.6 1.5 8 900 570 1.2
parallel 2.8 1.2 4.6 2.1
Series 1.4 4.8 18.4 2.1
JK60HS88-2008 unipolar 88 2 3 6.8 2.2 8 1000 840 1.4
parallel 2.8 1.5 6.8 3.1
Series 1.4 6 27.2 3.1
JK60HS100-2008 unipolar 100 2 3.2 6.4 2.8 8 1100 980 1.7
parallel 2.8 1.6 6.4 4.0
Series 1.4 6.4 25.6 4.0
JK60HS111-2008 unipolar 111 2.0 4.4 8.3 3.2 8 1200 1120 1.9
parallel 2.8 2.2 8.3 4.5
Series 1.4 8.8 33.2 4.5

Details of Nema24 Linear Motion Ball Screw:

Linear Guide Variable Hybrid Stepper Motor 21kg.Cm 1.8 Degree

Linear Guide Variable Hybrid Stepper Motor 21kg.Cm 1.8 Degree

The drawing of JK60HS67-2804BK2.8:

Linear Guide Variable Hybrid Stepper Motor 21kg.Cm 1.8 Degree

Linear Guide Variable Hybrid Stepper Motor 21kg.Cm 1.8 Degree

Linear Guide Variable Hybrid Stepper Motor 21kg.Cm 1.8 Degree

Linear Guide Variable Hybrid Stepper Motor 21kg.Cm 1.8 Degree

Linear Guide Variable Hybrid Stepper Motor 21kg.Cm 1.8 Degree

Certifications:

Linear Guide Variable Hybrid Stepper Motor 21kg.Cm 1.8 Degree

Recommend Products:

Linear Guide Variable Hybrid Stepper Motor 21kg.Cm 1.8 Degree

Stepper motor Application:

Linear Guide Variable Hybrid Stepper Motor 21kg.Cm 1.8 Degree

FAQ:

Q: 1. Can you make the gearbox or gearmotor with custom specifications?
A: YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.

Q: 2. Do you provide the samples?
A: YES. Our company can provide the samples to you

Q:3.Do you provide technology support?
A: YES. Our company have strong R&D capability, we can provide technology support if you need.

Q: 4. why should you buy from us not from other suppliers?
A: Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.

Q: 5. How to ship to us?
A: We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.

Q: 6. How can I know the product is suitable for me?
A: Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
